MS2580

Wireless Handrail Scale

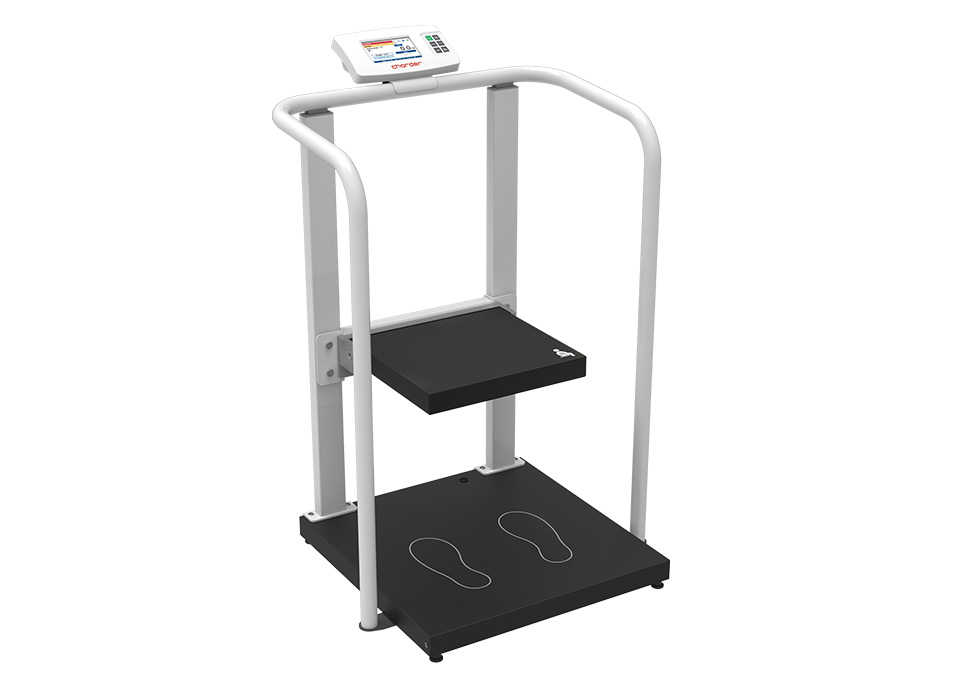

The MS2580 medical handrail scale's low-profile, anti-slip platform, handrails, and high capacity makes it an ideal measurement station for patients who need additional support while standing.

The platform is reinforced and wide enough to accommodate a chair for patients who cannot stand, and the ultrasonic stadiometer automatically measures height in seconds, simplifying the BMI calculation process.

Despite the large platform, the MS2580 can be easily transported using the built-in castor wheels, and powered by rechargeable batteries when needed.

Measurement data can be exported wirelessly with a single button press to compatible EMR systems, simplifying workflow for medical staff.

INQUIRY

About

EMR-ready for direct transfer to medical systems

The MS2580 is designed for customized wireless integration directly into your medical facility's EMR system, or through a gateway if needed. We've optimized the measurement workflow to ensure that the right measurements are being conducted for the right people, and transferred when ready!

1 Establish patient data

Establish patient ID/identifier, so device can quickly scan and save results during measurement procedure.

2 Prepare for measurement

Sterilize platform, and input pre-tare weight deduction if needed.

3 Input user ID and patient ID

Scan user and patient ID (or input manually using touchscreen) to ensure correct person is measured.

4 Conduct weight and/or height measurement

Press "HOLD" to confirm that results are to be saved and transferred after completion.
If digital stadiometer is attached to device, height measurement and BMI calculation will be completed automatically after patient steps onto platform.

5 Send measurement results to EMR system

Send results to EMR system with a single button press.

6 View results on system

Compare results with previous measurements to analyze trends.
Windows 7, 8, and 10 supported

Product Specifications

Indicator	DP4800
Capacity	300 kg
Graduation	100 g
Dimensions	Overall: 550(W) x 550(D) x 1090(H) mm 21.7(W) x 21.7 (D) x 42.9 (H) inch
Dimensions	Platform: 550(W) x 550(D) mm 21.7(W) x 21.7(D) inch
Device Weight	20.8 kg (45.9 lb)
Power Source	Rechargeable Battery Adapter

Product Functions

Functions	Body Mass Index Hold Tare Pre-Tare Unit
Key Functions	ON/OFF , HOLD , BMI , TARE/ZERO , MEMORY , PRE-TARE , TRANSFER
ID Confirmation	NURSE ID, PATIENT ID
Data Transmission	USB Wireless
Design Features	Bubble Level Adjustable Feet Castor Wheels Built-in ergonomical handrail supports for geriatric and bariatric patients
Optional Accessories	HM201M Mechanical Height Stadiometer HM200D, HM201D Digital Height Stadiometer HM200U Ultrasonic Height Stadiometer AS-9300 Barcode Scanner

Downloads

Brochure
