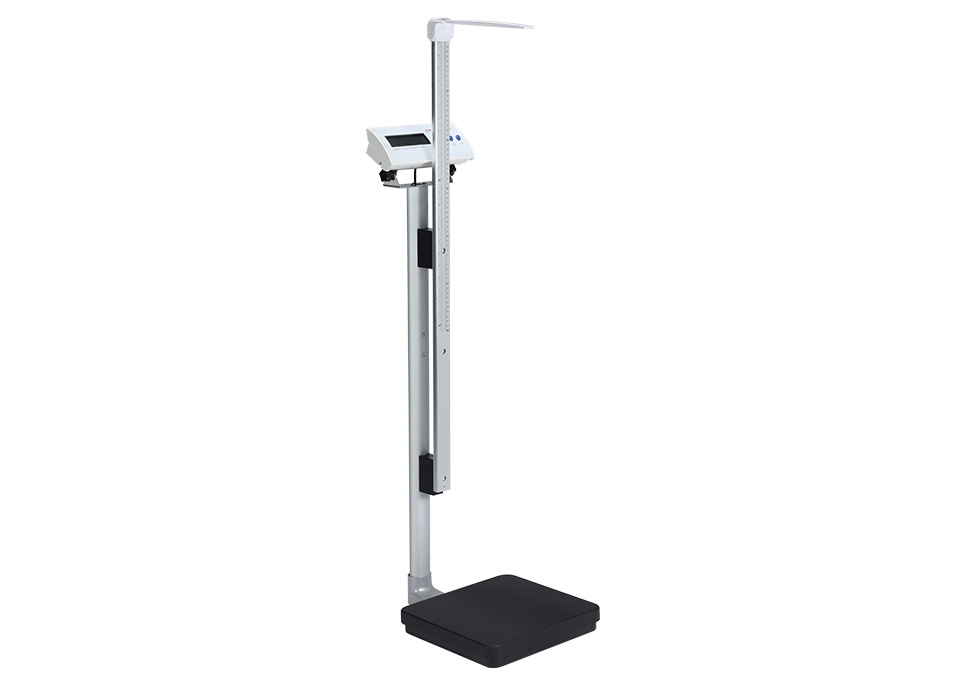

MS3400-1

Column Scale

The MS3400-1 is Charder's classic robust, reliable, and practical column scale, featuring a waist-level column and compatible with an attached height stadiometer to make easy use of the integrated BMI function.

Optional castor wheel option available!

  • ce
INQUIRY
MS3400-1
MS3400-1
MS3400-1
MS3400-1

Product Specifications

Indicator DP2701
Capacity 300 kg / 660 lb
Graduation 100g / 0.2 lb
Dimensions

Standard Model
Overall:
310(W) x 460(D) x 1070(H) mm
12.2(W) x 18.1 (D) x 42.1 (H) inch

Castor Wheel Model
Overall:
310(W) x 504(D) x 1070(H) mm
12.2(W) x 19.8 (D) x 42.1 (H) inch

Platform:
310(W) x 310(D)  mm
12.2 (W) x 12.1 (D) inch

Column:
900 mm
35.4 inch
Device weight 5.3 kg (11.7 lb)
Power Source Rechargeable Battery
Adapter

Product Functions

Functions
  • Body Mass Index
  • Hold
  • Tare
  • Unit switch (kg / lb)
Key Functions HOLD/BMI, UNIT/WEIGHT, ON/ZERO/OFF, TARE
Data Transmission RS232
Optional Accessories

HM201M Mechanical Height Stadiometer
HM200D Digital Height Stadiometer
HM201D Digital Height Stadiometer

Downloads

User Manual (English) Brochure Brochure (Castor Wheel Model)
