MS5980 Wireless Infant Height & Weight Scale for Hospitals

MS5980

Name: MS5980
Brand: Charder Electronic Co., Ltd.
SKU: MS5980

Wireless Infant Height & Weight Scale

Ergonomic and streamlined, the MS5980 is designed to make weighing fast and comfortable for infants. The extra-large tray makes measurement safe even for larger babies, and the integrated height meter automatically sends results to color touchscreen indicator.

Featuring key functions like hold and tare to make it easier to measure babies, a single button press sends results to an EMR system once measurement is complete.

Inquiry

About
Product Specifications
Product Functions
Download

EMR-ready for direct transfer to medical systems

The MS5980 is designed for customized wireless integration directly into your medical facility's EMR system, or through a gateway if needed. We've optimized the measurement workflow to ensure that the right measurements are being conducted for the right people, and transferred when ready!

1 Establish patient data

Establish patient ID/identifier, so device can quickly scan and save results during measurement procedure.

2 Input user ID and patient ID

Scan user and patient ID (or input manually using touchscreen) to ensure correct person is measured.

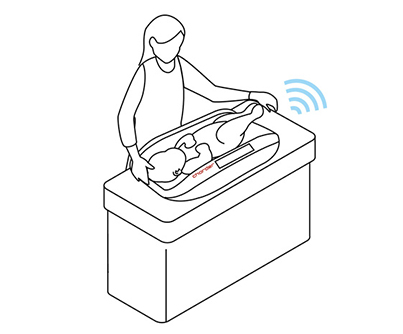

3 Conduct weight and / or height measurement

Press "HOLD" to confirm that results are to be saved and transferred after completion.

If digital stadiometer is attached to device, height measurement and BMI calculation will be completed automatically after infant is placed onto platform.

4 Send measurement results to EMR system

Send results to EMR system with a single button press.

5 View results on system

Compare results with previous measurements to analyze trends. Windows 7, 8, and 10 supported

Specification

Product model	MS5980
Indicator	DP4800
Capacity	15 kg
Graduation	2g < 6kg > 5g
Dimensions	Overall: 670 (W) x 470 (D) x 360 (H) mm 26.4 (W) x 18.5 (D) x 14.2 (H) inch
	Platform: 630 (W) x 250 (D) x 70 (H) mm 24.8 (W) x 9.8 (D) x 2.8 (H) inch
	Column: 360 mm (14.2 inch)
Device Weight	5.8 kg (12.8 lb)
Power Source	Rechargeable Battery Adapter

Functions

Product model	MS5980
Functions	Body Mass Index Hold Tare Pre-Tare Unit Backlight
Key Functions	On / Off, Hold, BMI, Tare / Zero, Memory, Pre-tare, Transfer
Data Transmission	USB Wireless
Design Features	Bubble Level Adjustable Feet Software-controlled weight damper Ergonomically contoured weighing tray Anti-tilt design
Accessories	HM80M Mechanical Infant Height Stadiometer HM80D, HM80DT, HM100D Digital Infant Height Stadiometers AS-9300 Barcode Scanner
