EMR-ready for direct transfer to medical systems

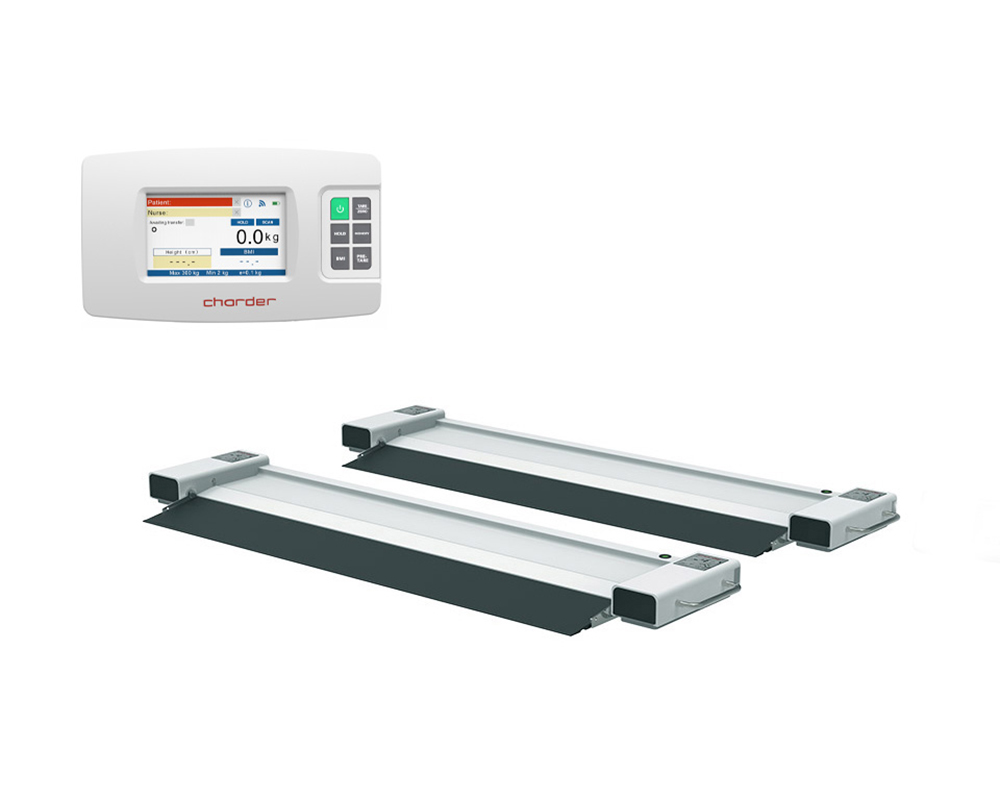

The MS6080 Bed Scale is designed for customized wireless integration directly into your medical facility's EMR system, or through a gateway if needed. We've optimized the measurement workflow to ensure that the right measurements are being conducted for the right people, and transferred when ready!
1 Establish patient data
Establish patient ID/identifier, so device can quickly scan and save results during measurement procedure.
2 Input user ID and patient ID
Scan user and patient ID (or input manually using touchscreen) to ensure correct person is measured.
3 Conduct weight measurement
Press "HOLD" to confirm that results are to be saved and transferred after completion. Height can be manually input for calculation of BMI.
4 Send measurement results to EMR system
Send results to EMR system with a single button press.
5 View results on system
Compare results with previous measurements to analyze trends. Windows 7, 8, and 10 supported
Specification
| Product model | MS6080 |
| Indicator | DP4800 |
|---|---|
| Capacity | 600 kg / 1300 lb |
| Graduation | 100 g / 0.2 lb |
| Dimensions |
Overall:
1256 (W) x 366 (D) x 61.5 (H) mm
49.4 (W) x 14.4 (D) x 2.4 (H) inch |
|
Platform:
1000 (W) x 160 (D) mm
39.4 (W) x 6.3 (D) inch |
|
| Device Weight (per beam) | 11.4 kg (25.1 lbs) |
| Power Source |
 Rechargeable Battery Adapter |
Functions
| Product model | MS6080 |
| Functions |
|
|---|---|
| Key Functions | On / Off, Hold / BMI, Tare / Zero, Memory, Pre-tare, Transfer |
| ID Confirmation | NURSE ID, PATIENT ID |
| Data Transmission |
 USB Wireless (optional) |
| Design Features |
 Bubble Level Castor Wheels Handle Ultra low-profile foldable ramp Weight change warning buzzer |
| Optional Accessories |
 SM-2714 Indicator Stand AS-9300 Barcode Scanner |
