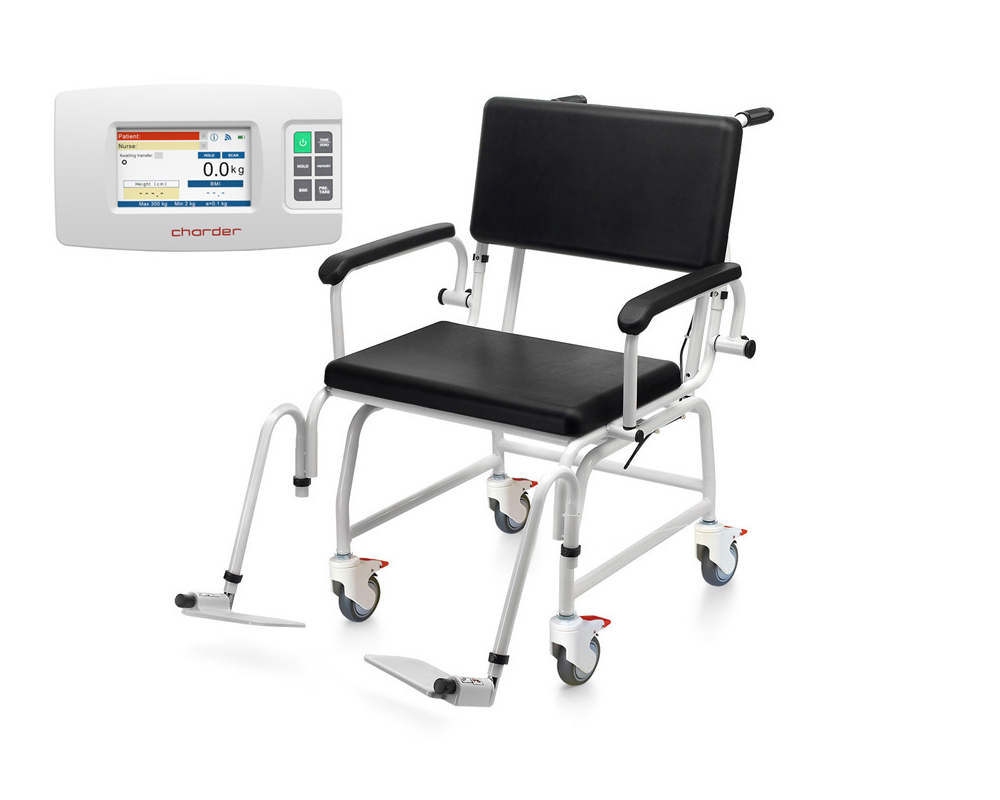

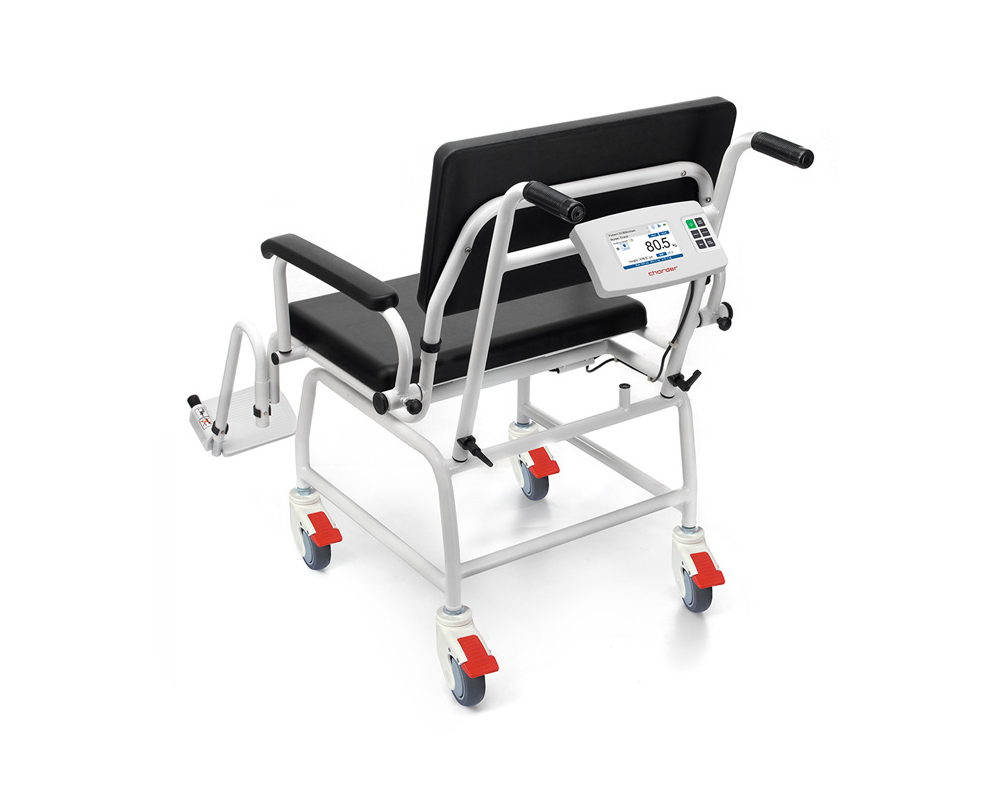

MS5470 Wireless Heavy Duty Digital Chair Scale

MS5470

Name: MS5470
Brand: Charder Electronic Co., Ltd.
SKU: MS5470

Wireless Heavy Duty Chair Scale

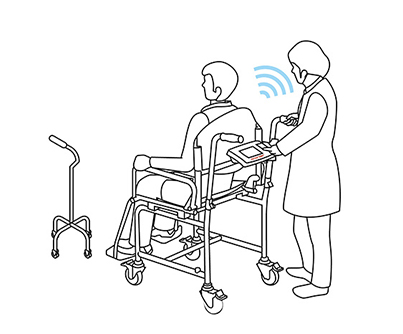

The Charder MS5470 heavy duty digital chair scale is designed to safely weigh patients that have difficulty standing unassisted. It is intended to be pushed directly into patient rooms, so patients do not need to walk to weighing stations. After completing a round of measurements (up to 100 stored), results can be transmitted wirelessly to PC, making the MS5470 an excellent option for integration with EMR systems.

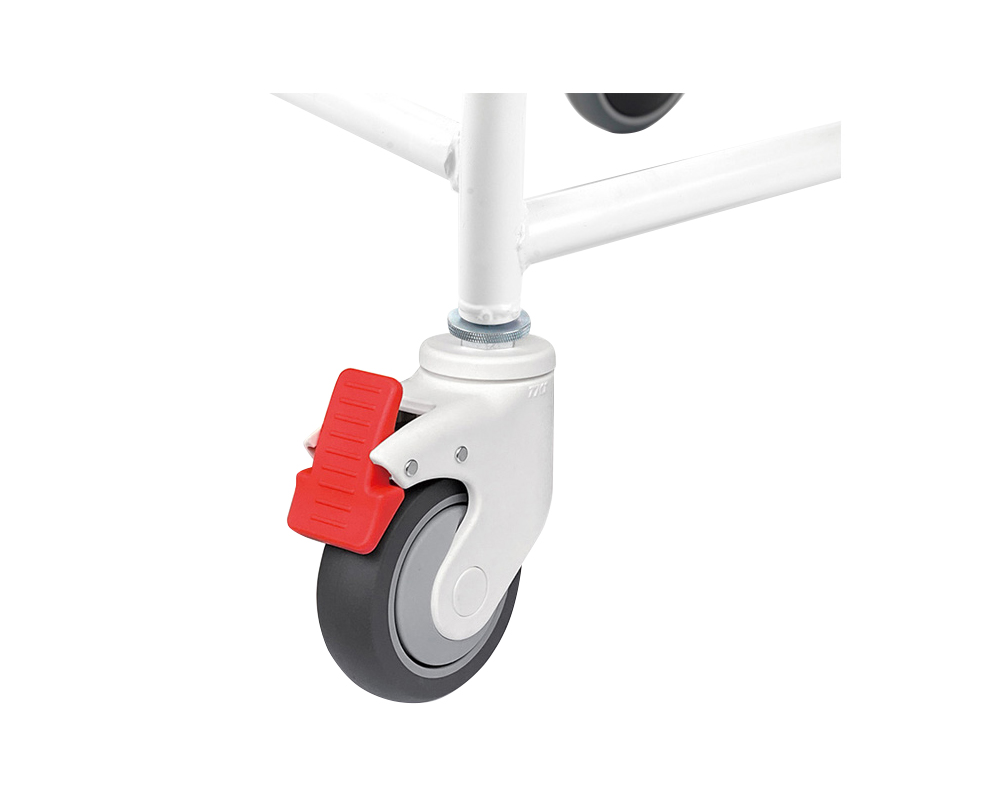

Features push handles for ease of transportation and four swiveling wheels with brakes, for safety during measurement.

(NOTE: The device is NOT a wheelchair, and should not be pushed when patient is sitting in seat)

Inquiry

About
Product Specifications
Product Functions
Download

EMR-ready for direct transfer to medical systems

The MS5470 is designed for customized wireless integration directly into your medical facility's EMR system, or through a gateway if needed. We've optimized the measurement workflow to ensure that the right measurements are being conducted for the right people, and transferred when ready!

1 Establish patient data

Establish patient ID/identifier, so device can quickly scan and save results during measurement procedure.

2 Input user ID and patient ID

Scan user and patient ID (or input manually using touchscreen) to ensure correct person is measured.

3 Conduct weight measurement

Press "HOLD" to confirm that results are to be saved and transferred after completion, and assist patient to sit in chair

4 Send measurement results to EMR system

Send results to EMR system with a single button press. If device isn't currently connected (ex: chair scale conducting measurement in patient's room), up to 100 results can be stored in device memory to be transferred when scale is returned to connectivity station.

5 View results on system

Compare results with previous measurements to analyze trends. Windows 7, 8, and 10 supported

Specification

Product model	MS5470
Indicator	DP4800
Capacity	300 kg / 660 lbs
Graduation	100 g (0.22 lb)
Dimensions	Overall: 1235 (D) x 690 (W) x 945 (H)mm 48.6 (D) x 12.2 (W) x 37.2 (H) inch
	Seat: Height 530 mm (20.9 inch) Width 565 mm (22.2 inch) Depth: 380 mm (15.0 inch)
	Armrest height: 700 mm (27.6 inch)
Device Weight	23 kg (50.7 lb)
Power Source	Rechargeable Battery Adapter

Functions

Product model	MS5470
Functions	Body Mass Index Hold Tare Pre-Tare Backlight
Key Functions	On / Off, Hold, BMI, Tare / Zero, Memory, Pre-tare, Transfer
ID Confirmation	NURSE ID , PATIENT ID
Data Transmission	USB Wireless (optional)

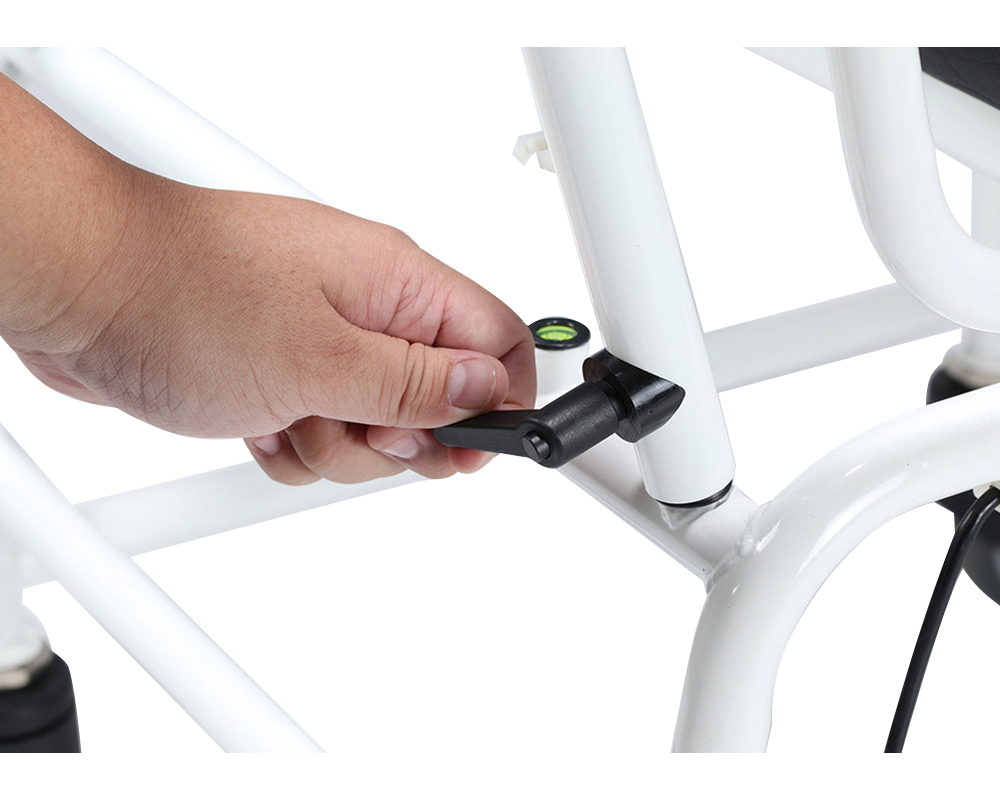

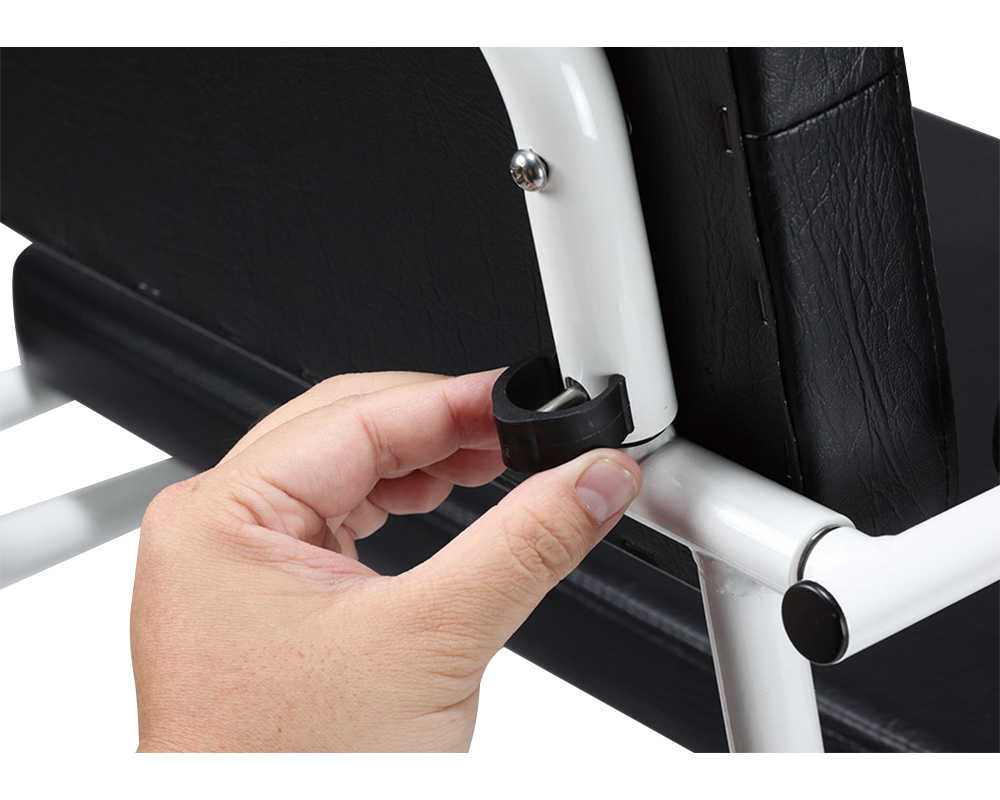

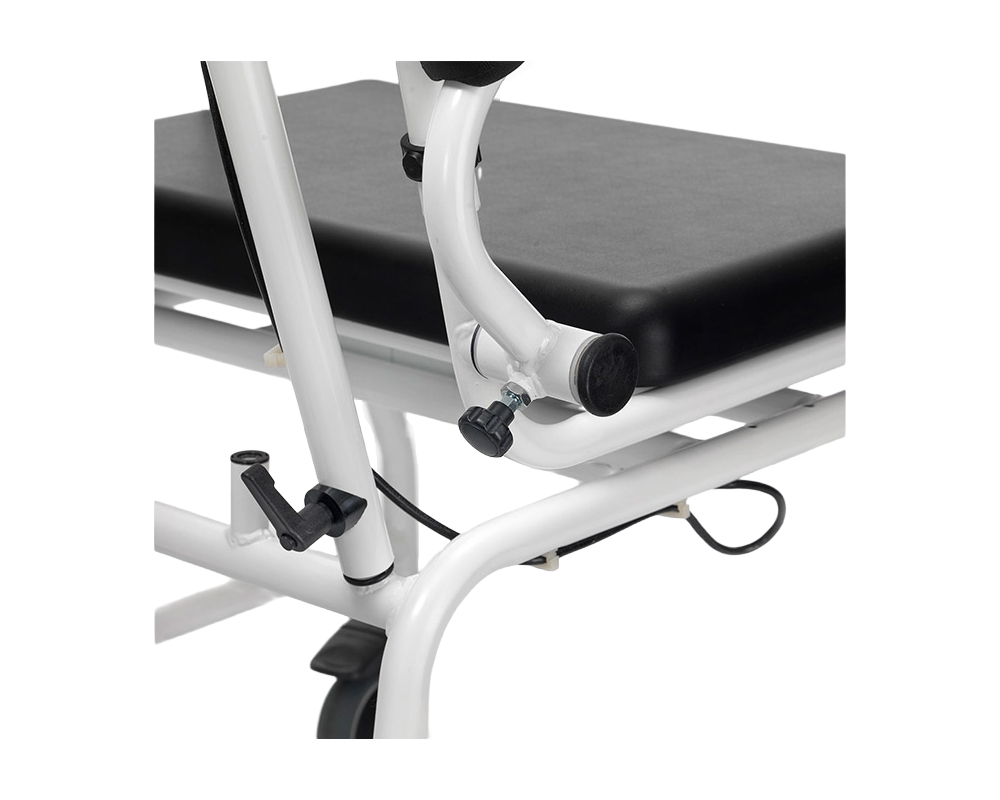

Design Features	Bubble Level Castor Wheels Foldable Footrest Swivel Armrest
Optional Accessories	AS-9300 Barcode Scanner Basket
