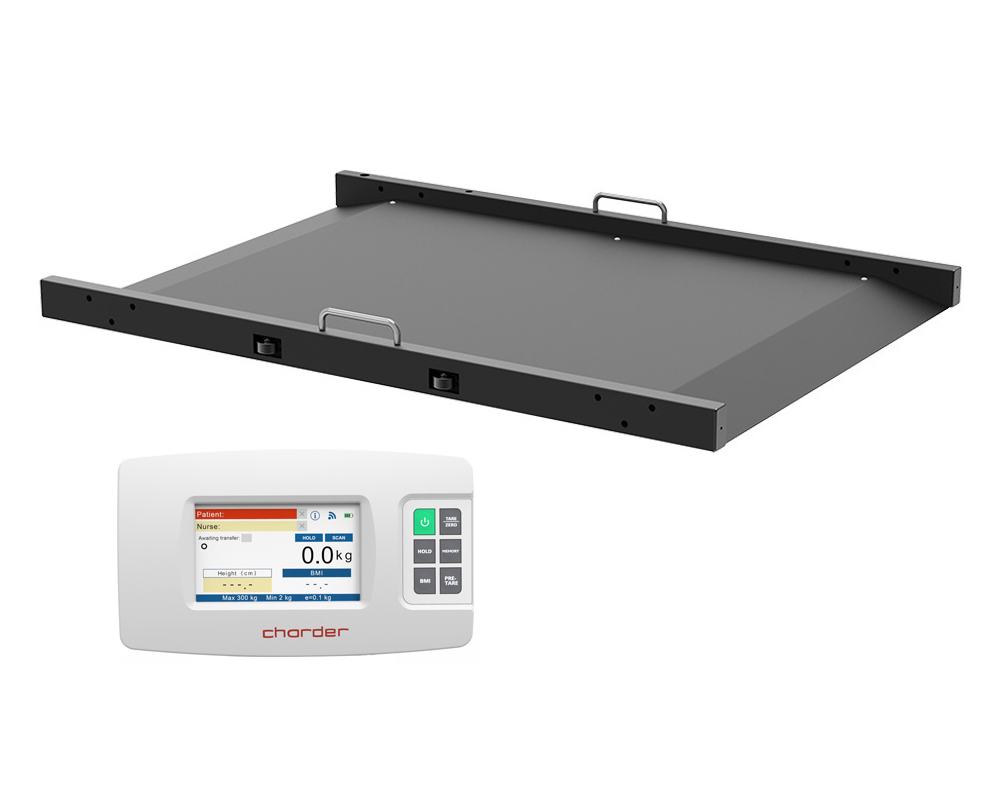

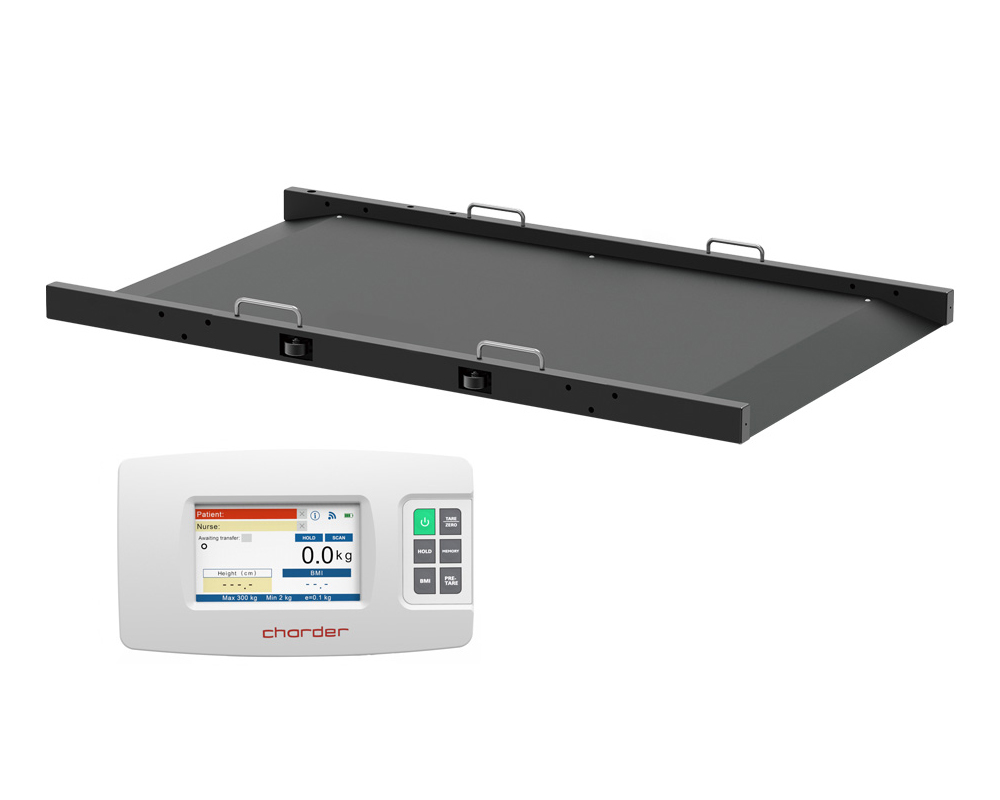

MS3880 Wireless Heavy Duty Wheelchair Scale

MS3880

Name: MS3880
Brand: Charder Electronic Co., Ltd.
SKU: MS3880

Wireless Heavy Duty Wheelchair Scale

The high-capacity MS3880 wheelchair scale is portable and easily transported on rolling casters. Optional handrails can be attached for added stability. The low-profile ramp leads to a non-slip platform designed specially for patients with difficulty standing.

By taring the weight of the wheelchair, a patient's exact weight can be accurately measured.

Results can be automatically transferred to data management system via wireless transmission, making the MS3880 an excellent option for integration with EMR systems.

Inquiry

About
Product Specifications
Product Functions
Download

EMR-ready for direct transfer to medical systems

The MS3880 Wheelchair Scale is designed for customized wireless integration directly into your medical facility's EMR system, or through a gateway if needed. We've optimized the measurement workflow to ensure that the right measurements are being conducted for the right people, and transferred when ready!

1 Establish patient data

Establish patient ID/identifier, so device can quickly scan and save results during measurement procedure.

2 Input user ID and patient ID

Scan user and patient ID (or input manually using touchscreen) to ensure correct person is measured.

3 Conduct weight measurement

Press "HOLD" to confirm that results are to be saved and transferred after completion. Height can be manually input for calculation of BMI.

4 Send measurement results to EMR system

Send results to EMR system with a single button press.

5 View results on system

Compare results with previous measurements to analyze trends. Windows 7, 8, and 10 supported

Specification

Product model	MS3880
Indicator	DP4800
Capacity	300 kg / 600 lb
Graduation	100 g / 0.22 lb
Dimensions (Standard)	Overall: 1150 (W) x 800 (D) x 66 (H) mm 45.3 (W) x 31.5 (D) x 2.6 (H) inch
Dimensions (Standard)	Platform: 900 (W) x 740 (D) mm 35.4 (W) x 29.1 (D) inch
Dimensions (XL)	Overall: 1500 (W) x 860 (D) x 66 (H) mm 59.1 (W) x 33.9 (D) x 2.6 (H) inch
Dimensions (XL)	Platform: 1200 (W) x 800 (D) mm 47.2 (W) x 31.5 (D) inch
Device Weight (per beam)	Standard: 32.0 kg (70.5 lb) XL: 47.0 kg (103.6 lb) Chair Accessory: 5.2 kg (11.5 lb)
Power Source	Rechargeable Battery Adapter

Functions

Product model	MS3880
Functions	Body Mass Index Hold Tare Pre-Tare Unit Backlight
Key Functions	On / Off, Hold / BMI, Tare / Zero, Memory, Pre-tare, Transfer
ID Confirmation	NURSE ID, PATIENT ID
Data Transmission	USB Wireless
Design Features	Bubble Level Adjustable Feet Castor Wheels Handle Low-profile platform
Optional Accessories	SM-2714 Indicator Stand SM-3462 Left Handrail SM-3461 Right Handrail SS-8444 Cross Bar ST-8236 Adapter Carry Bag AS-9300 Barcode Scanner
