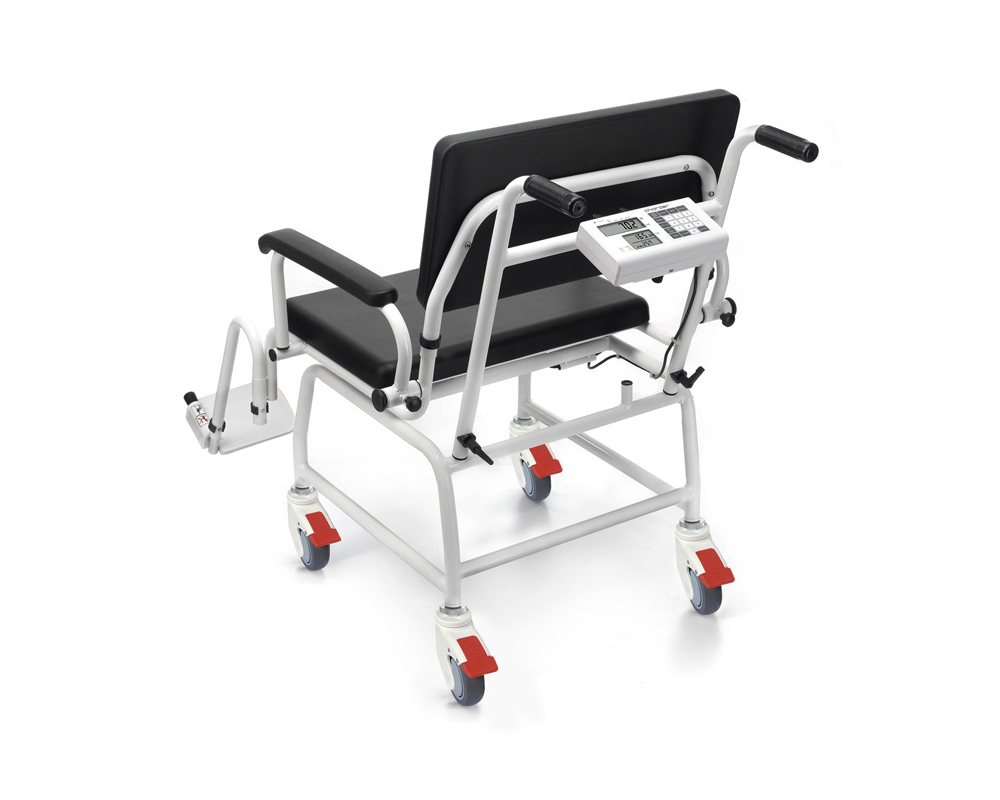

MS5440

Heavy Duty Chair Scale

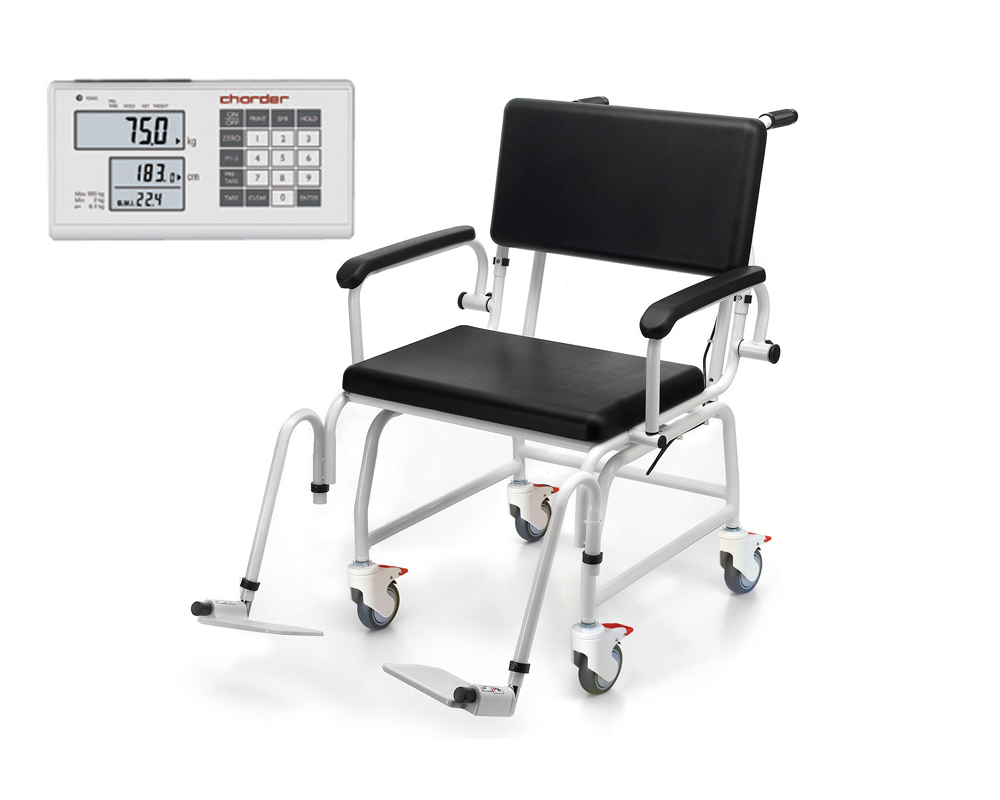

The Charder MS5440 heavy duty digital chair scale is specially designed for larger/bariatric patients. It is intended to be pushed directly into patient rooms, so patients that have difficulty standing do not need to walk to weighing stations.

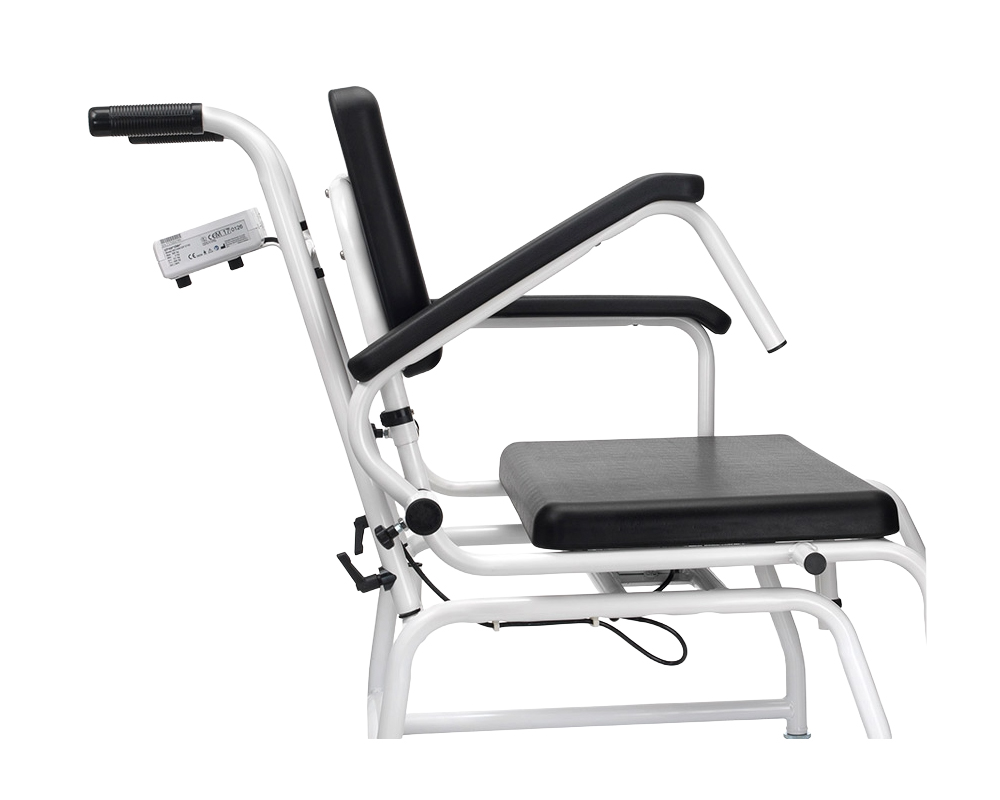

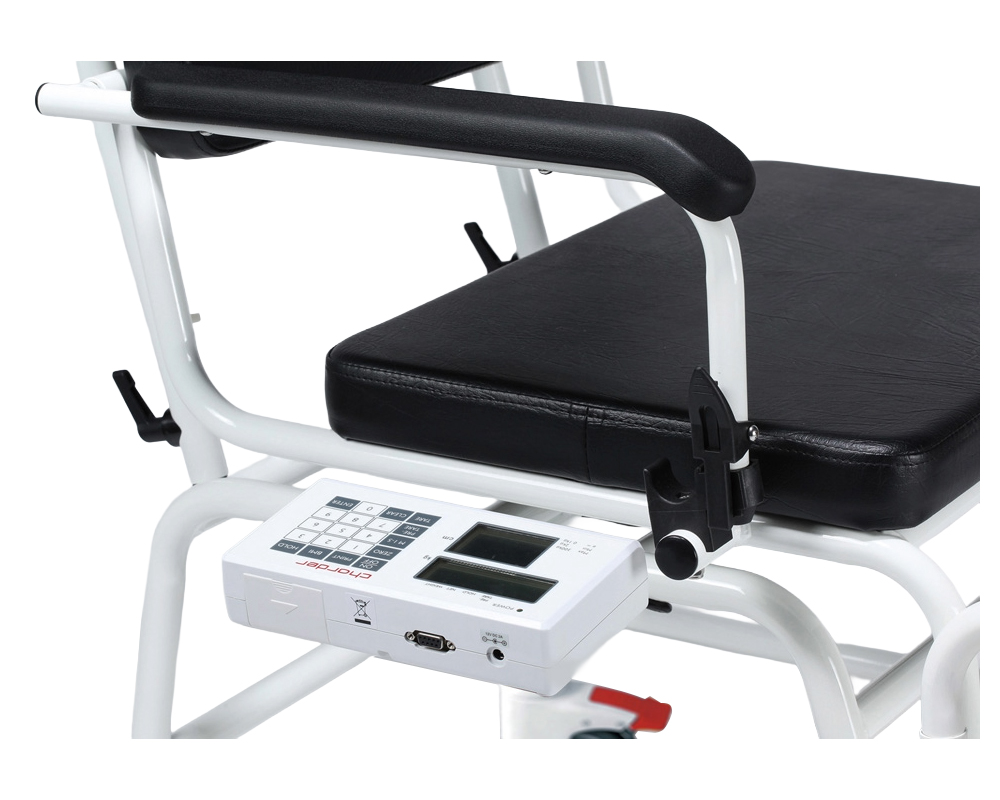

The dual LCD screens display weight and BMI simultaneously, and can be mounted at the side or rear of the chair as needed.

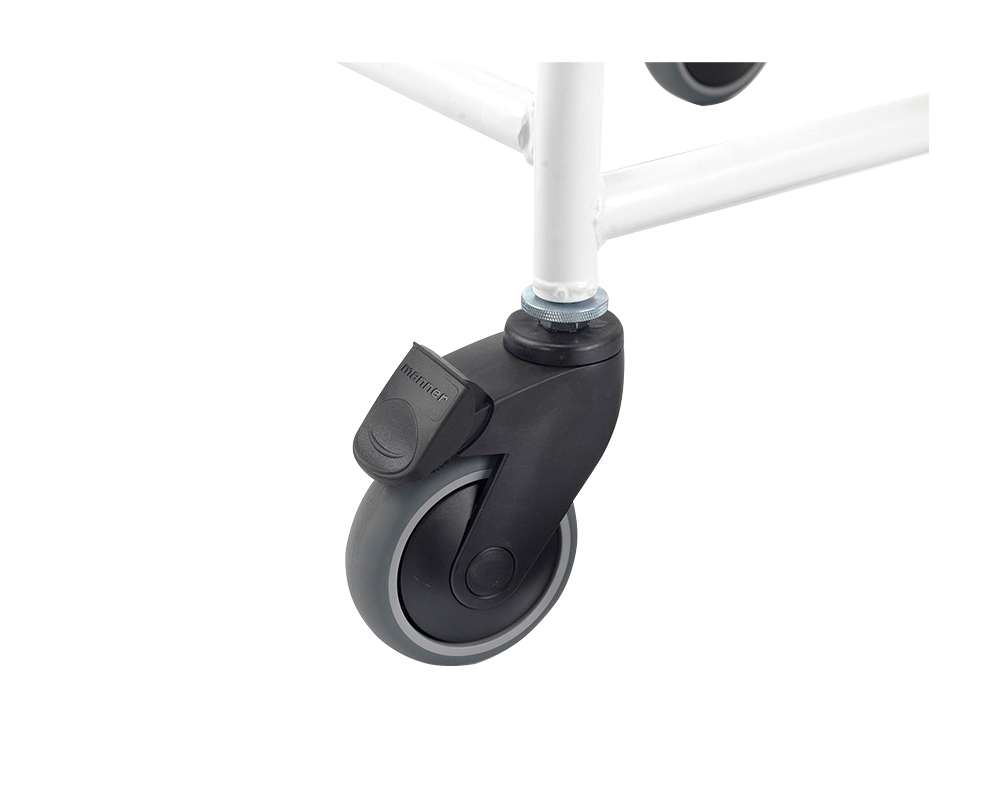

The MS5440 features push handles for ease of transportation, and four swiveling wheels with brakes for safety during measurement.

(NOTE: The device is NOT a wheelchair, and should not be pushed when patient is sitting in seat).

ce
ce-oiml
FDA
Inquiry
  • Product Specifications
  • Product Functions
  • Download
Specification
Product model MS5440
Indicator DP3710
Capacity 300 kg
Graduation 100 g
Dimensions
Overall:
920 (H) x 1190 (D) x 690 (W) mm
36.2 (H) x 46.9 (D) x 12.2 (W) inch
Seat:
Height 530 mm (20.9 inch)
Width 565 mm (22.2 inch)
Depth: 380 mm (15.0 inch)
Armrest height: 700 mm (27.6 inch)
Device Weight 23 kg (50.7 lb)
Power Source
AA Batteries*6
Rechargeable Battery (optional)
Adapter
Functions
Product model MS5440
Functions
  • Body Mass Index
  • Print
  • Hold
  • Tare
  • Pre-Tare
  • Backlight
Key Functions On / Off, Zero, Tare, Pre-tare, M1~5, Print, BMI, 0~9, Clear, Enter
Data Transmission
USB
Wireless
Design Features

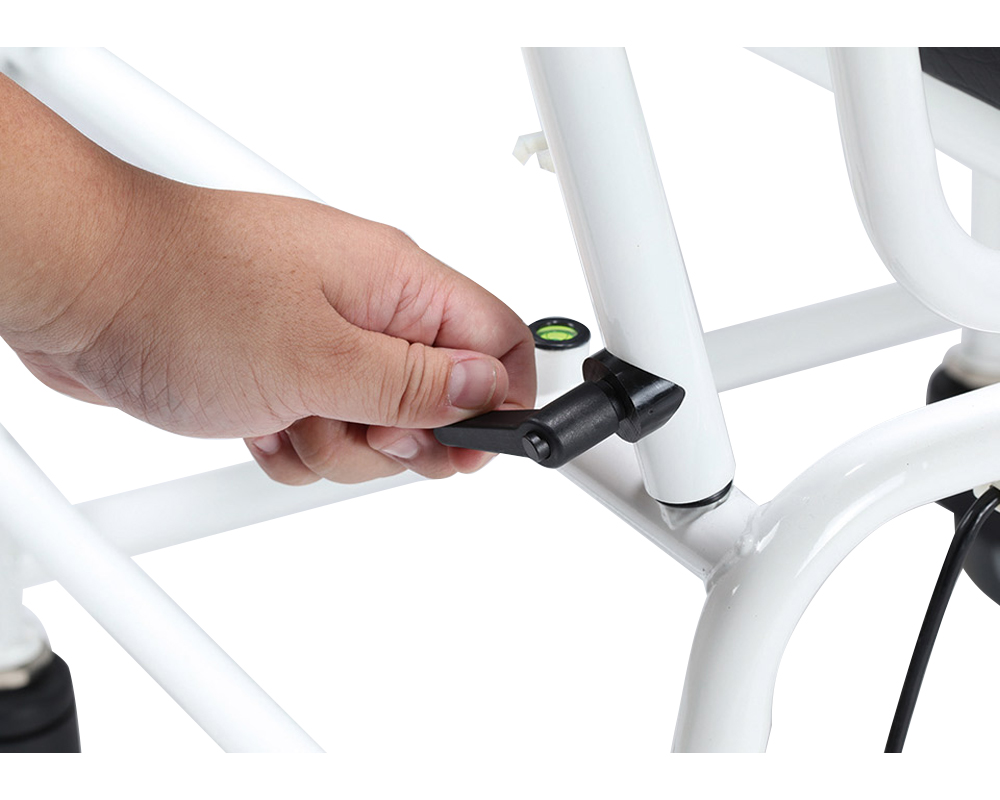

Bubble Level
Castor Wheels

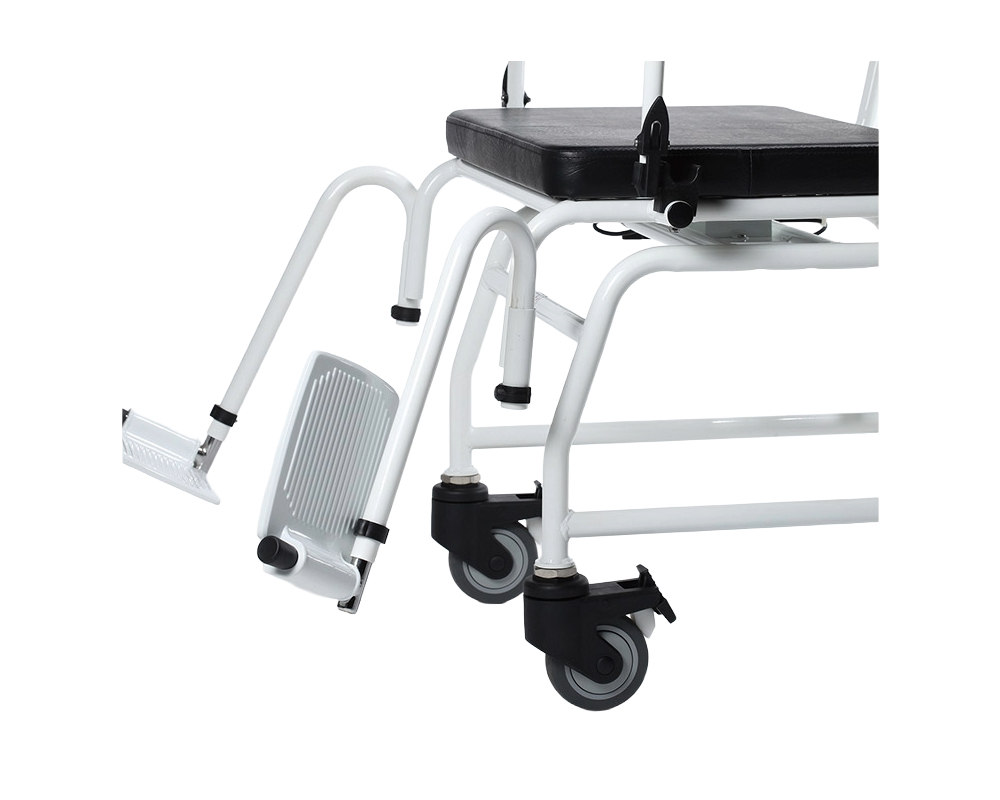

Foldable Footrest

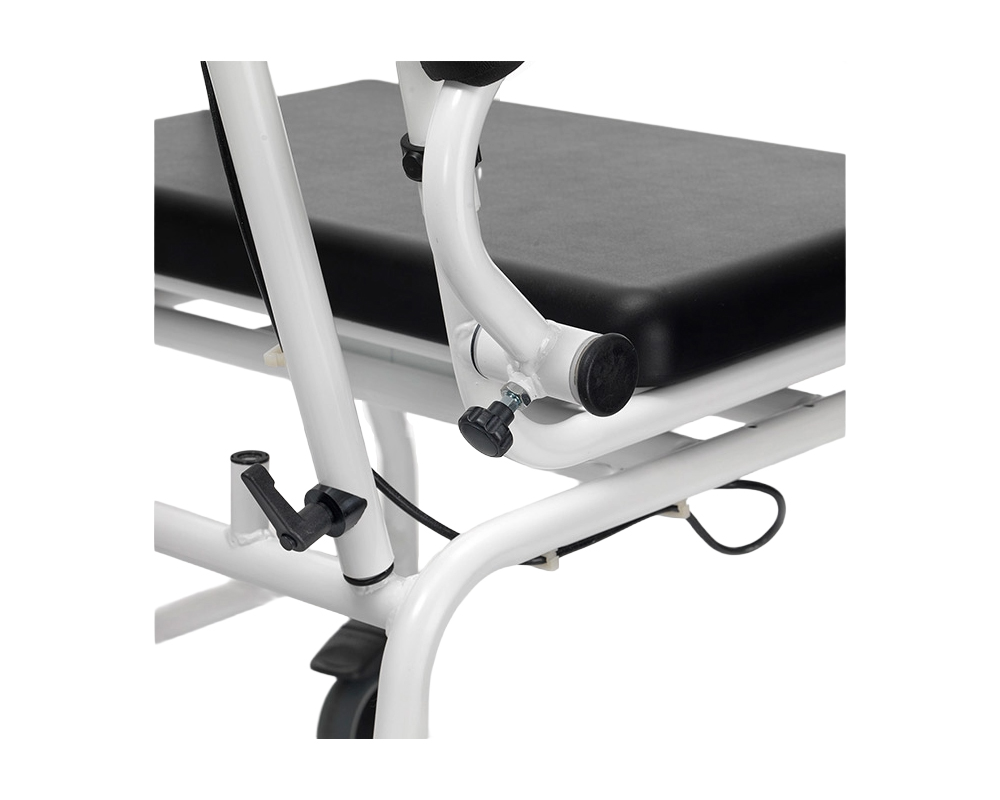

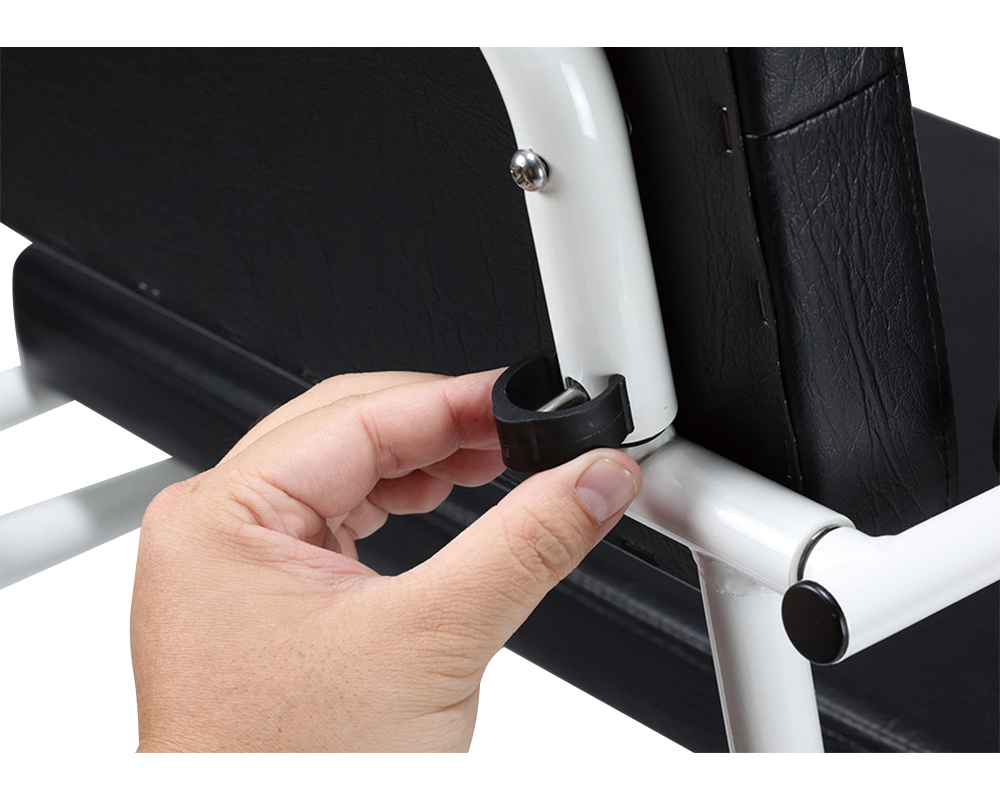

Swivel Armrest
Accessories
TP2100 Thermal Printer (USB)
TP2110 Wireless Thermal Printer (Wireless Module needed)
ST-8236 Adapter Carry Bag
